Da Vinci Clamp System

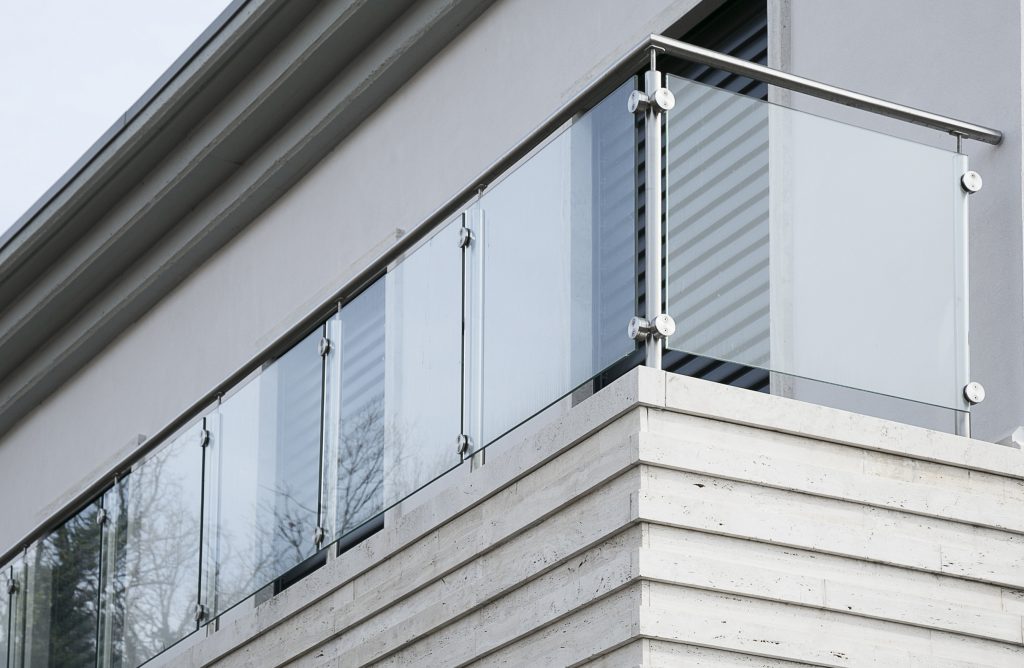

The system allows the creation of glass railings through the use of the ‘Da Vinci’ clamp support. Thanks to the interchangeable anchorage, it can be adapted to any type of pillar. The moveable clamp enables the glass to be rotated around the mounted post, with a lateral locking mechanism requiring just a single support for a glazing panel.

General Characteristics

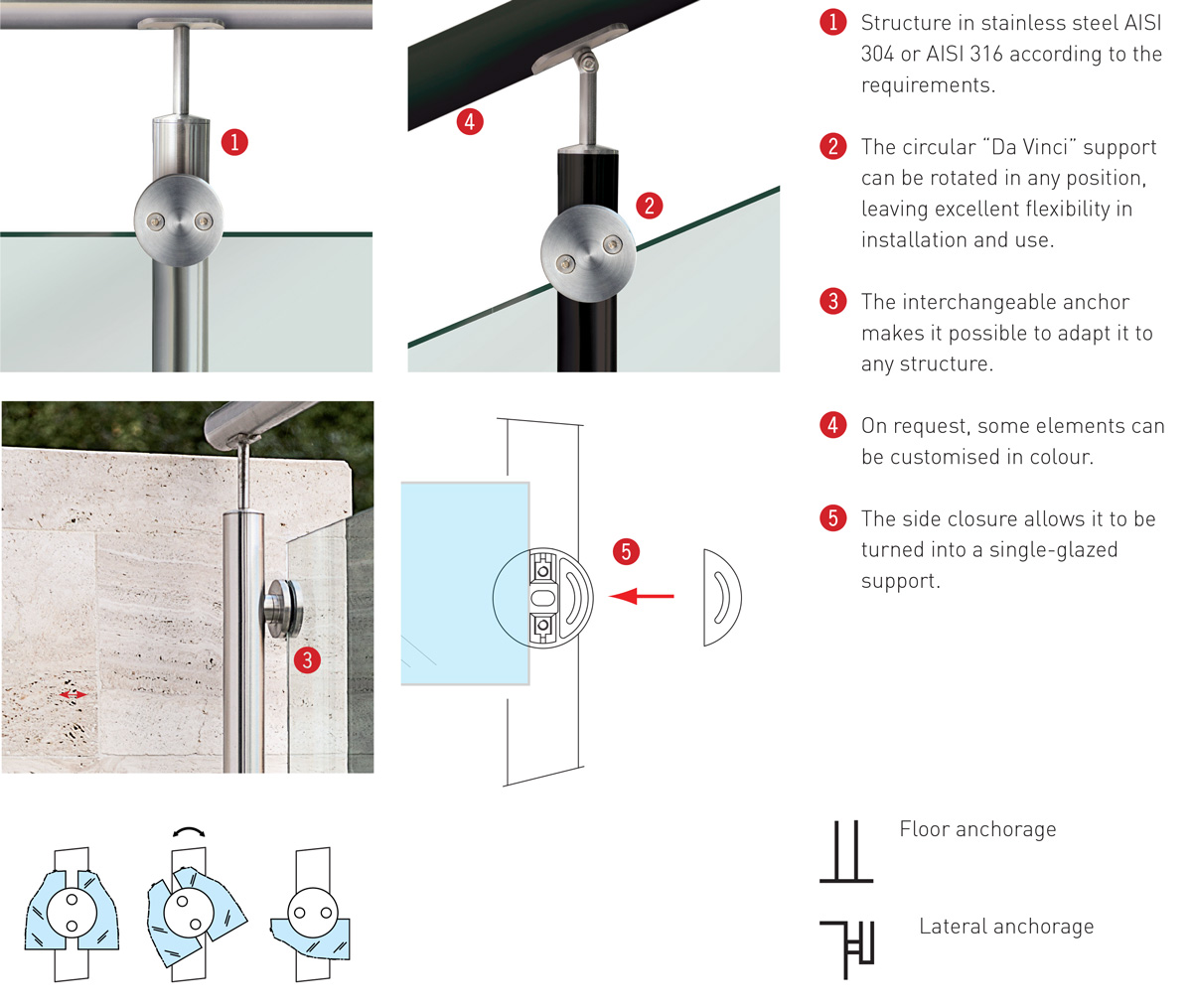

Da Vinci is an innovative glass clamp system based on an interchangeable clamp that can be used with almost any tube or newel post. By virtue of its circular shape, the accessory simultaneously supports two glass sheets.

The kit comprising rubber seals in different widths allows the use of monolithic or laminated glass of variable thickness.

Technical Features


  • Ideal for home and public use
  • Easy to install and adjust
  • No welding is necessary during installation
  • Possibility of use with safety plug or external plug without drilling the glass
  • Simple design
  • Customisable colour and finish
Designed for:domestic use and public places
Use:internal and external
Variations:floor or wall mounted
Applications:stairs, balconies and balustrades
Material:AISI 316 and 304 stainless steel
Glass thickness:from 8 to 12.76mm
Upper finish:satin or glossy stainless steel
